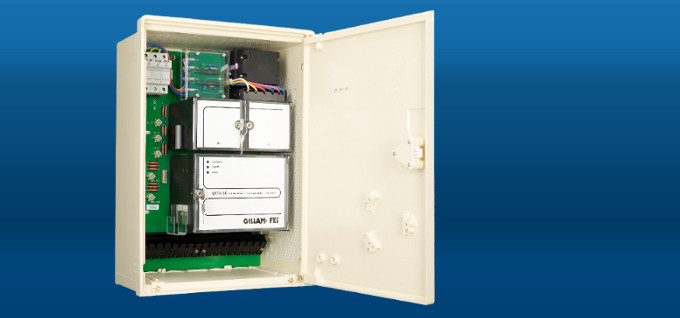

GRTU – Smart Grid
Description
The GRTU-SG is a modular automate intended for supervision and control of medium and low voltage electrical networks (MV/LV).
This automate allows a complete supervision of a MV/LV distribution substation.
Its modular design offers you the possibility to adapt its functionality to each specific need of a distribution substation within a single and same enclosure.
The GRTU-SG brings new solutions to operators to improve the network’s energy efficiency and brings solutions to distributed power generation issue (Photovoltaic, wind power, …)
The GRTU-SG supports modern communication channels such as Ethernet, GPRS, …
Functionality
- MV cable failure detection
- Current fault detection
- Directional fault detection
- Transformer overload detection
- Uph and Iph measurement (LV side)
- Power measurement (LV side)
- Two temperature measurements
- 1 UPS module
- 16 digital inputs (16 DI)
- 8 digital outputs (8 DO)
- 1 spare slot
- IEC 60870-5-104 compatible
- Local HTTP connection
- GSM/GPRS modem available
- Electrical substations supervision
- Aerial electrical network supervision
- Supervision of underground compensated neutral electrical network
- Supervision of underground impedent neutral electrical network
- Alarms transmission to the dispatching
- Power measurement
